Products Profile

An automated external defibrillator (AED) is a medical device designed to analyze the heart rhythm and deliver an electric shock to victims of ventricular fibrillation to restore the heart rhythm to normal. Ventricular fibrillation is the uncoordinated heart rhythm most often responsible for sudden cardiac arrest.

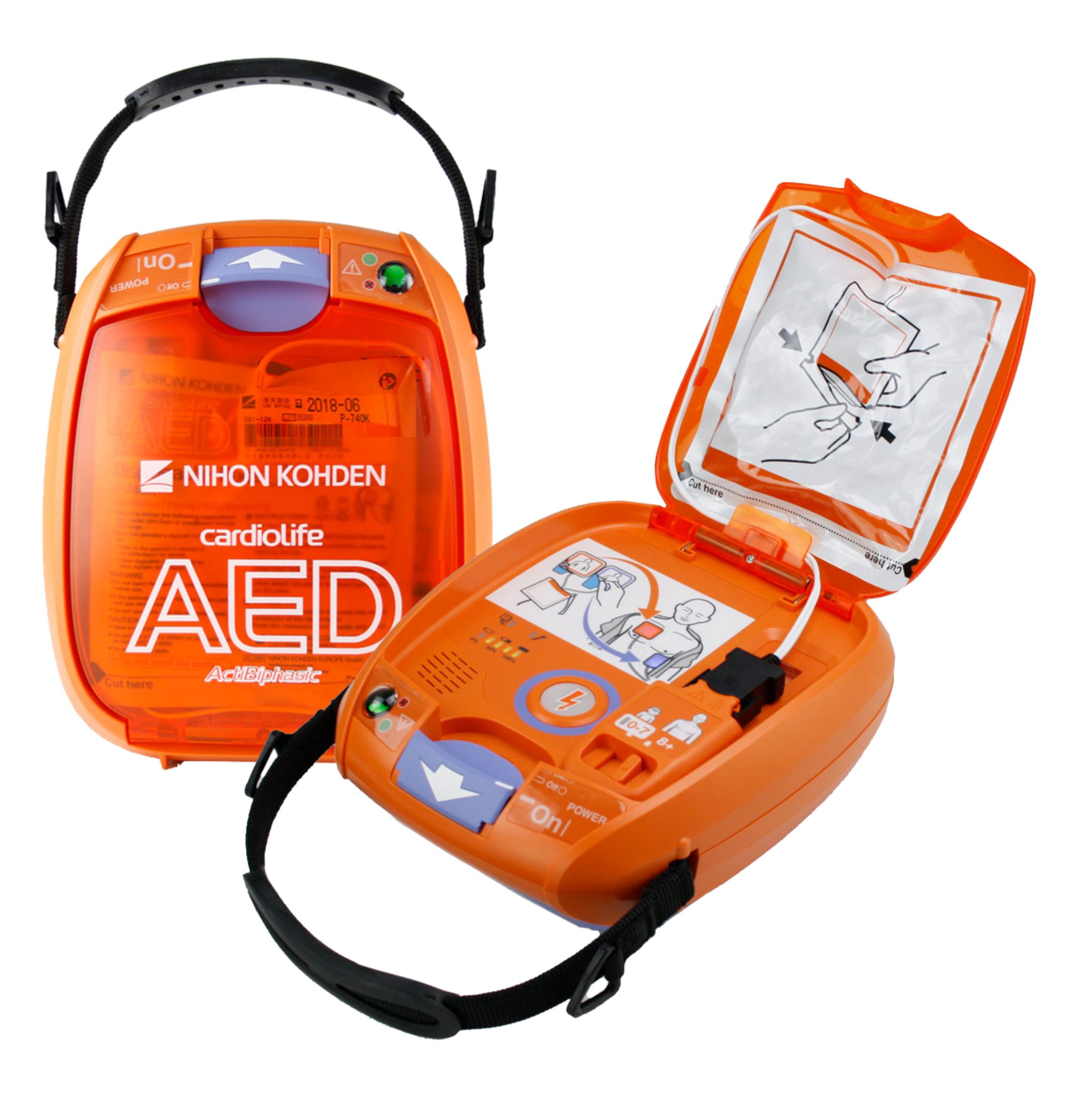

• Brand: Nihon Kohden
• Product Model: AED-3100
• Dimension: 97(H) x 252(D) x 206(W)(mm)
• Weight: 2.3kg with Battery and Pads
• Energy: ( Adult : 150-200-200J ) / ( Child : 50-70-70J )

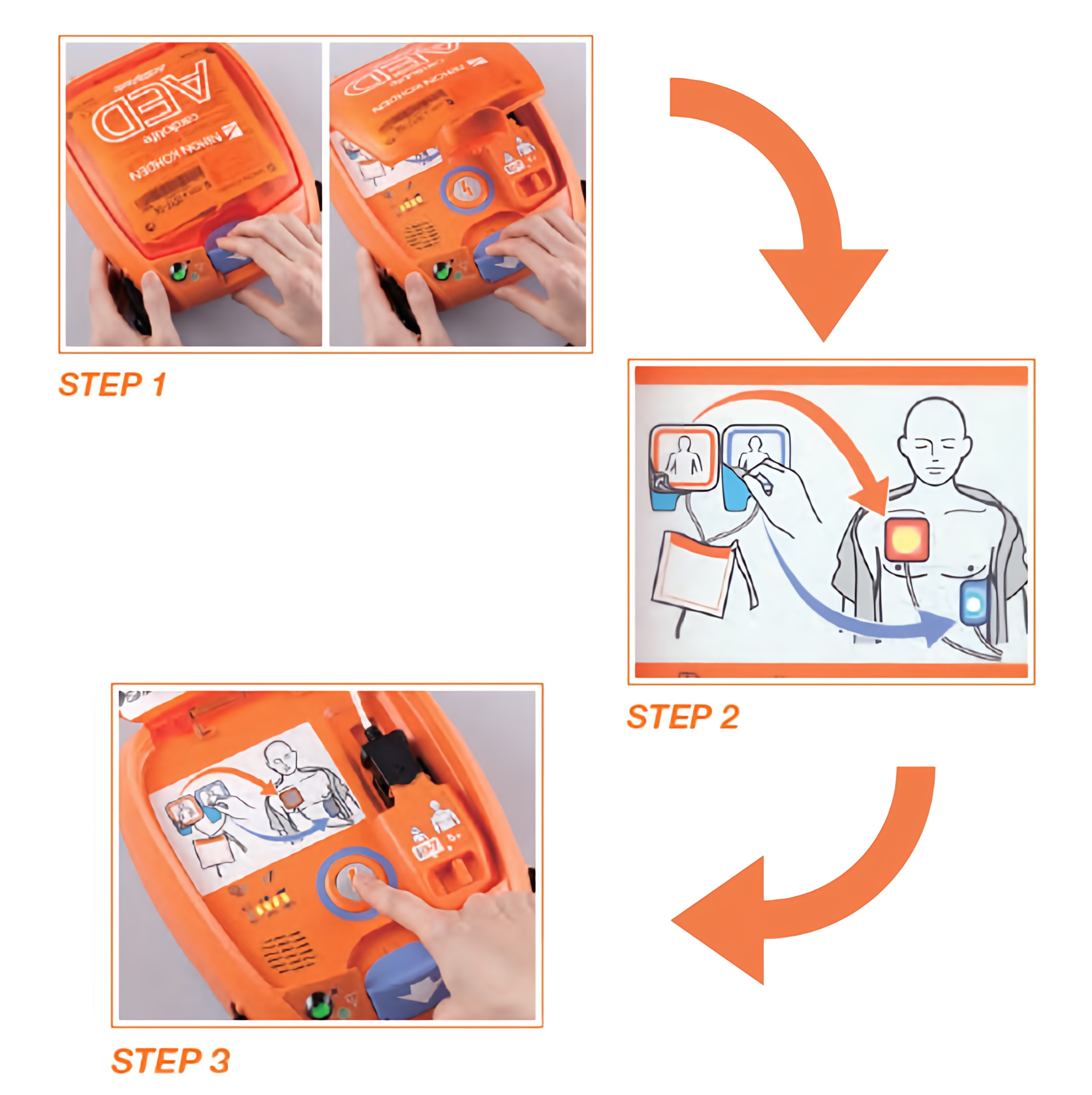

• User interface: Instruction by voice, CPR timing sound 100 times/minute (option). Indicator (green/red), shock button, adult/child key.
• Battery Capacity: 200 discharges or 7.5 hours monitoring. Standby life: 4 years.
• Analysis time: Less than 8 seconds, minimum 4.5 seconds
• Form turn on to discharge: Less than 15 seconds (with a new battery)
• Standard Vibration: MIL-STD-810F 514.5C category 4 and category 9, EN1789. Water and dust proof: IP55.
• Operation: Semi-automatic (Shock advisory)
• Audible alerts: Voice Prompt, Charging alert and Maintenance alert.

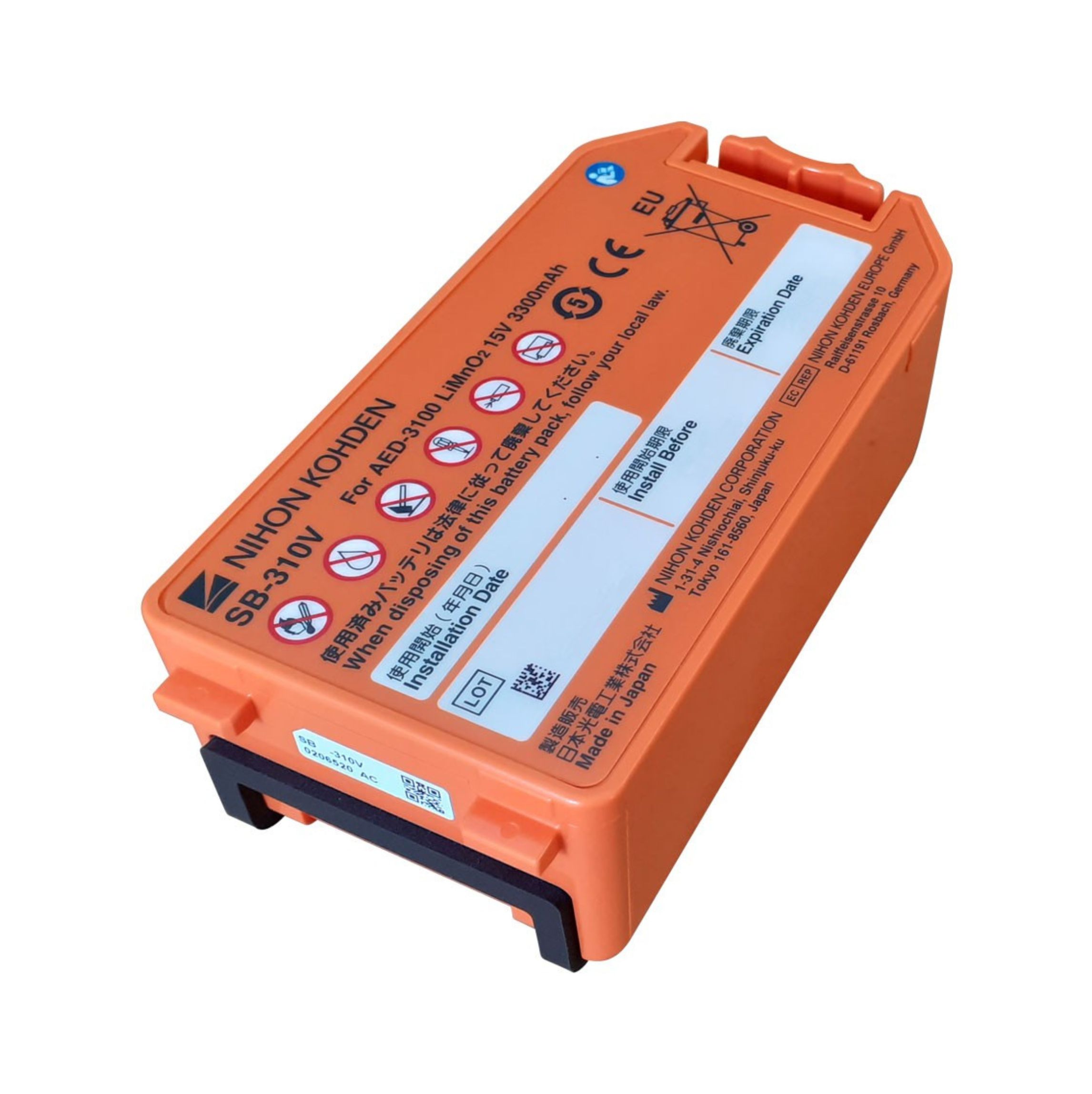

• Battery type: Manganese dioxide lithium battery
• Rated Voltage: 15.0V
• Rated Capacity: 3300mAh

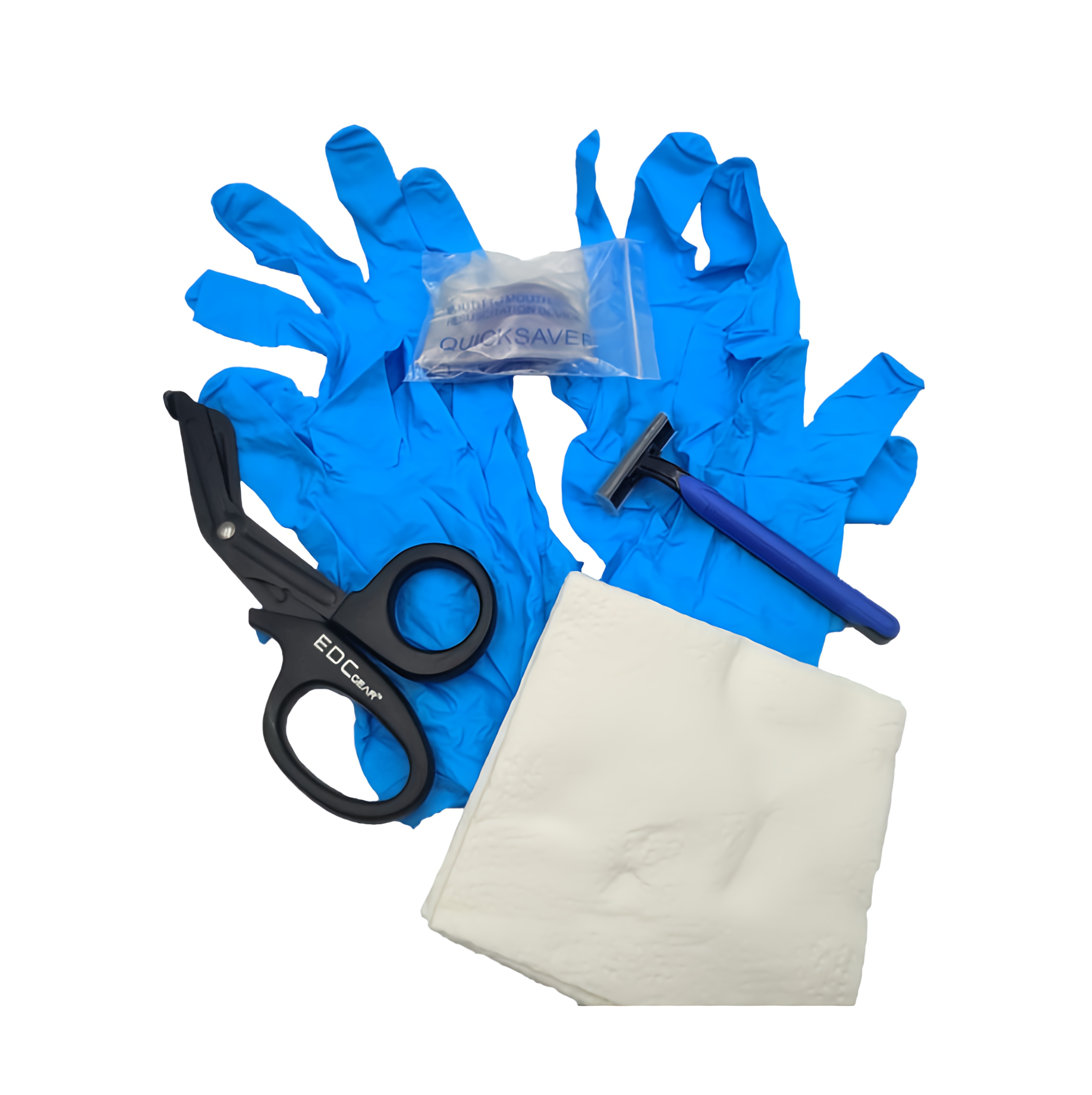

• Set of AED Rescues Kit
